HYBRID EQUALISER 15 BAND SEQ215A
R1,740.00
| Input | Connector | XLR & 6.35 jacks |
| Input impedance | Balanced 20Kohms | |
| Input level | Rated 0dB, Max +20dB | |
| Output | Connector | XLR & 6.35 jacks |
| Output impedance | Balanced 50 ohms | |
| Output level | Rated 0dB, Max +26dB | |
| SUB out | XLR, balanced 150 ohms, rated 0dB low pass: 30-200Hz (adjustable) | |
| Max equalising range | +/- 6dB or +/-12dB (by selection) | |
| Max voltage gain | +6dB unbalanced; +12dB balanced (at flat position) | |
| Frequency response | +1/-2dB (20Hz – 20kHz) | |
| Total harmonic distortion | <0.05% (20Hz – 20kHz) | |
| Low-cut filter | 80Hz 18dB/oct | |
| S/N ratio | >96dB | |
| General | Power supply | 220-240VAC; 50-60Hz |
| Power consumption | <15W |
| Weight | 3.3 kg |
|---|---|
| Dimensions | 52 × 23 × 10 cm |
Description

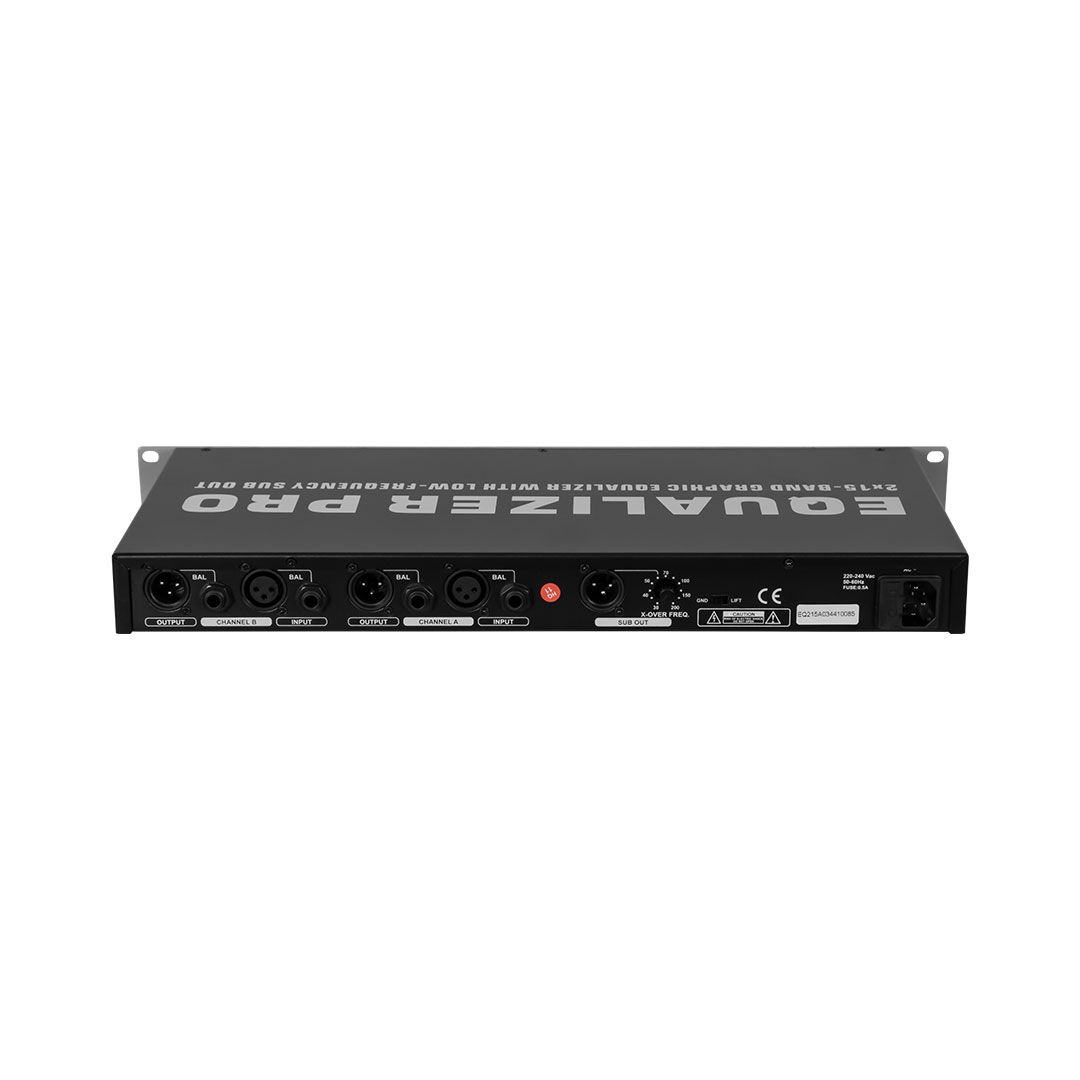

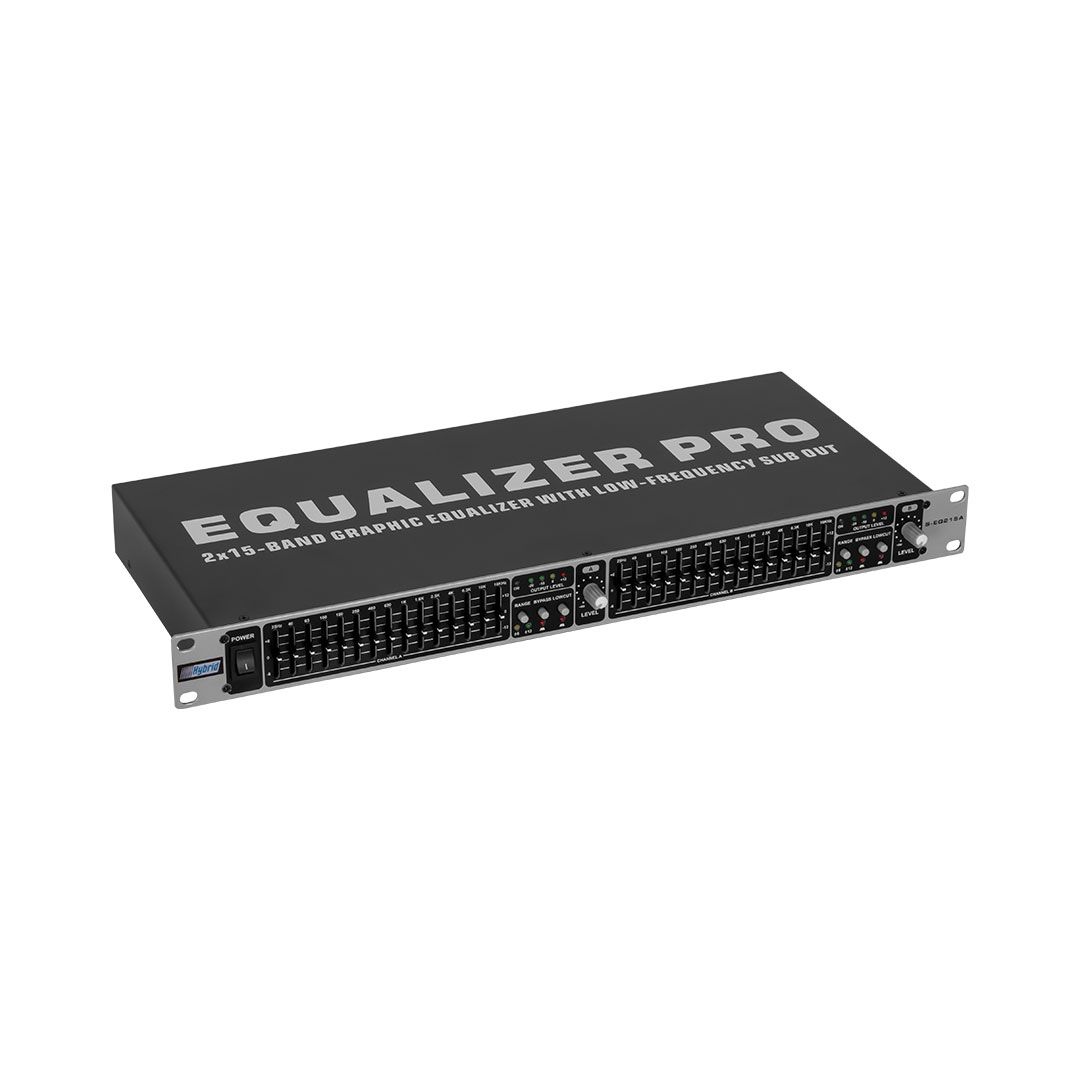

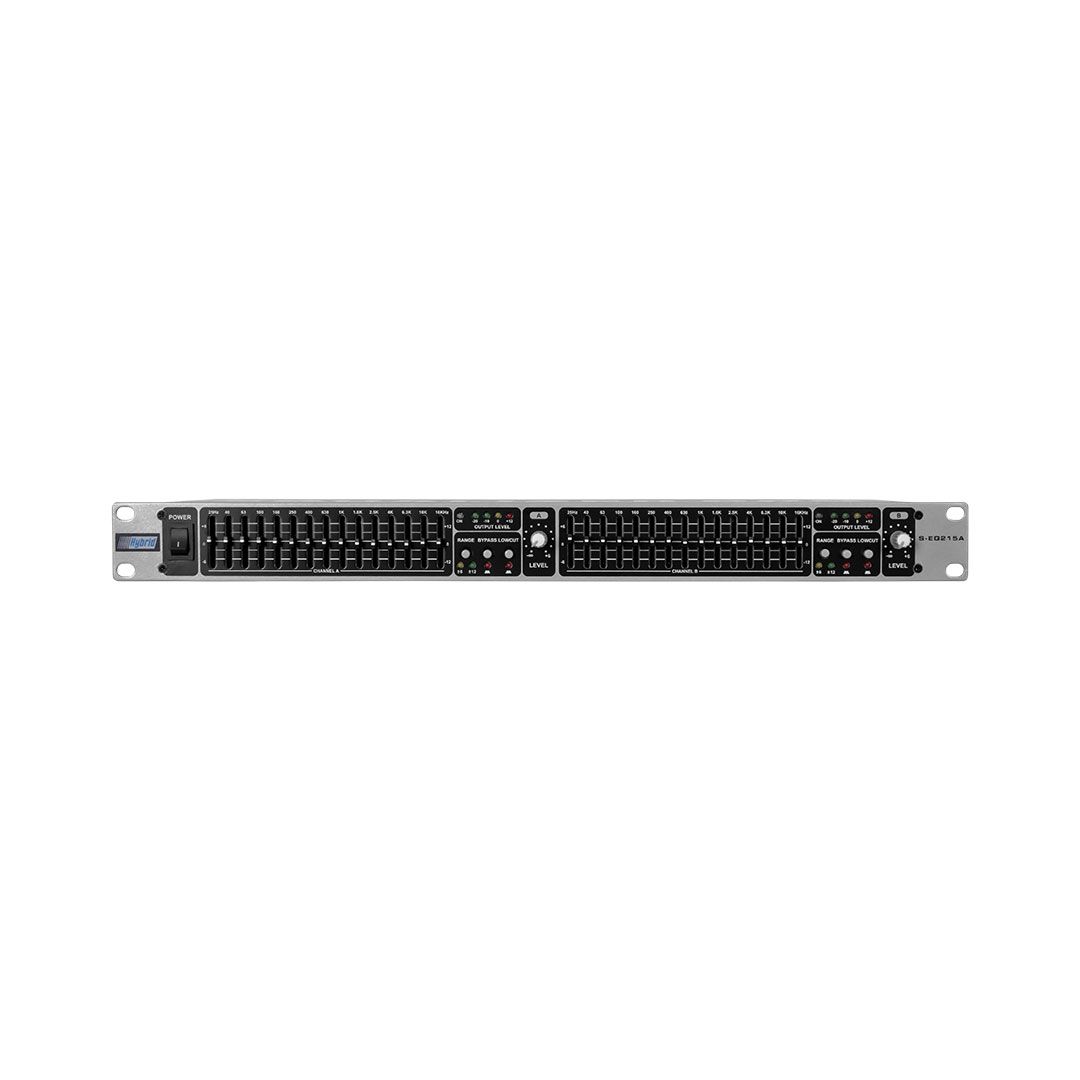

The Hybrid SEQ215A is a versatile 15-band 2/3 octave graphic equaliser designed to give you precise control over your sound. With both balanced and unbalanced connections for input and output, it easily integrates into a variety of audio setups.
This unit features a built-in low-cut filter that can be activated with a switch to help reduce low-frequency interference. You can choose between two equalising ranges — ±6dB or ±12dB — to suit different audio applications.
Additional features include separate channel level control, output level indicators, and a bypass switch for flexible operation.
