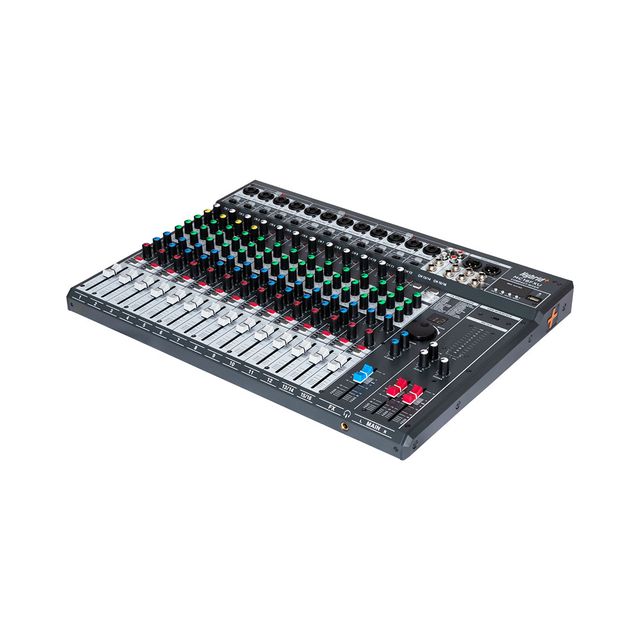

HYBRID+ 16 CHANNEL ANALOGUE MIXER

Inputs & Channels:

• 12 Mono Mic/Line Channels (1–12)
  Each channel features a combo XLR/6.5mm jack input, -20dB pad, low-cut switch, gain control with peak LED, 3-band EQ (low, mid, high), aux send, FX send, pan control, mute switch, PFL (pre-fade listen), and a 60mm fader.
  Channels 1–4 include dedicated compressor controls.
  Phantom power (48V) is grouped into three separate groups: Channels 1-4, 5-8 and 9-12

• 2 Stereo Line Channels (13/14 & 15/16)
  Dual 6.5mm jack inputs with -10dB pad, 3-band EQ, aux send, balance control, mute switch, PFL, and 60mm fader.
  Channel 15/16 is switchable between stereo input, USB audio interface, and MP3 playback.

Built-in Digital Effects:

• 24 selectable effects via rotary encoder
• Adjustable parameter control, FX send level, and dedicated 60mm FX fader

USB & Media Playback:

• Integrated MP3 player with Bluetooth and USB stick playback
• Built-in Type-C USB audio interface for direct recording and playback
• Audio interface cable included: Type-C connector for the mixer, with three output options – Type-C, USB-A, and Lightning – for seamless connection to laptops, PCs, iPhones, iPads, and Android devices

Master Controls:

• Dual 60mm master faders (L/R)
• 12-segment LED meters (switchable between main out and PFL)
• Controls for aux in, tape in, and headphone volume
